Compared with traditional extruded or bonded fin Heat Sinks, the skived heat sink offers significantly higher fin density and lower thermal resistance, making it ideal for demanding thermal management solutions.
A skived heat sink (also called a skived fin heat sink) is manufactured using a precision skiving process. A special cutting tool slices thin, continuous fins directly from a solid block of aluminum or copper.
This integrated structure eliminates thermal interface resistance between fins and base, resulting in excellent heat transfer performance.
Common materials include:
Aluminum skived heat sink

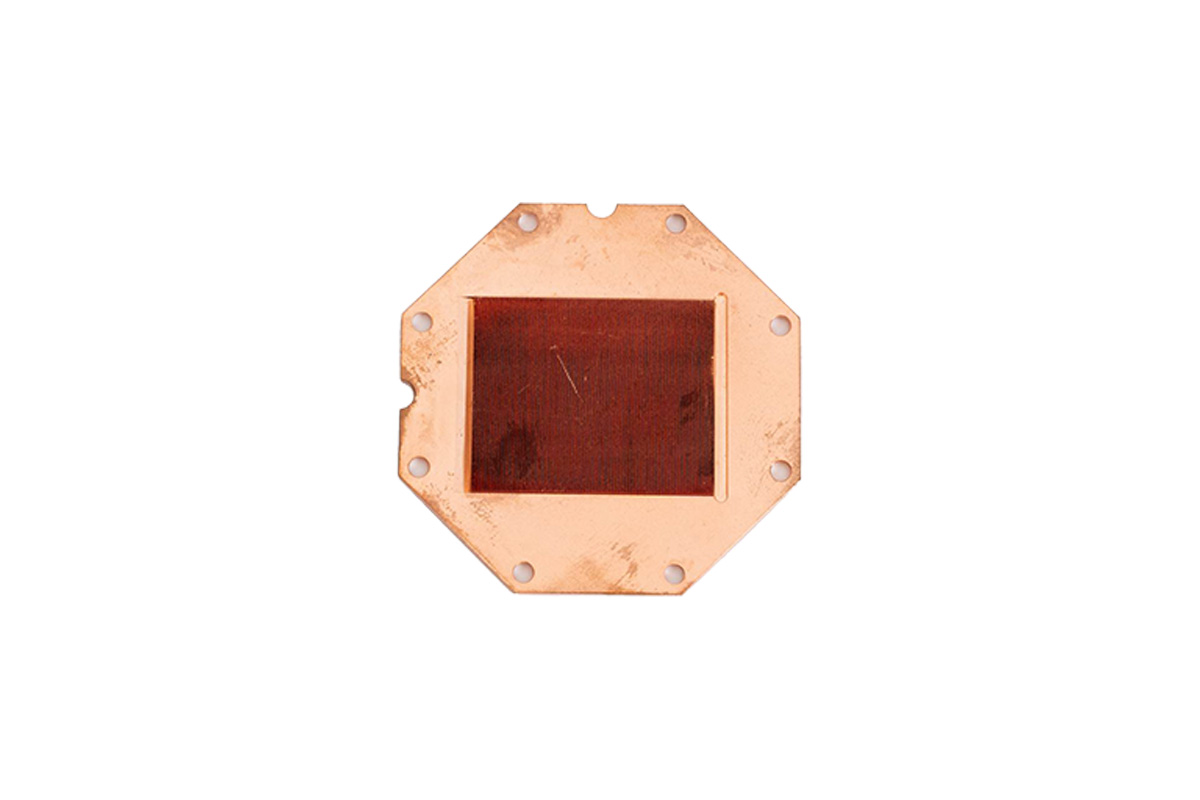

Copper skived heat sink
The working principle of a skived heat sink for power electronics is based on efficient heat conduction and convection:
Heat generated by power electronic components (such as IGBT or MOSFET modules) is transferred to the heat sink base through direct contact.
The solid metal base rapidly spreads heat across the entire structure, reducing localized hot spots.
High-density fins created by the skiving process significantly increase surface area, allowing heat to dissipate into the air through natural or forced convection.
In many systems, a fan is used to increase airflow, further improving heat removal efficiency and reducing thermal resistance.
One of the key advantages of a skived fin heat sink is its high heat dissipation capacity.
Depending on design, material, and airflow conditions:
A standard aluminum skived heat sink can typically handle 50W to 500W of heat load in natural convection conditions.
With forced air cooling, performance can increase to 500W to 1500W+.
High-end copper skived heat sinks used in dense power modules can achieve even higher performance in compact spaces.
In a typical power electronics system:
Without optimized cooling: junction temperature may reach 90°C–110°C
With standard extruded heat sink: reduced to 70°C–85°C
With skived heat sink for power electronics: further reduced to 55°C–75°C
With forced air + optimized design: can achieve below 60°C in high-efficiency systems
This significant reduction in operating temperature helps improve system stability, efficiency, and component lifespan.
A skived heat sink manufacturer can provide solutions with the following benefits:
Extremely high fin density
Low thermal resistance
Excellent heat transfer efficiency
No bonding interface (solid structure)
Strong reliability under high power loads
Flexible design for custom applications
The skived heat sink for power electronics is widely used in:
IGBT modules
Inverters and converters
UPS power systems
Industrial motor drives
Renewable energy systems (solar & wind)
Energy storage systems (ESS)
These applications require stable thermal performance under continuous high load conditions.
Compared with other structures:
Extruded heat sink → lower cost, moderate performance
Bonded fin heat sink → flexible design, but interface resistance exists
CNC machined heat sink → high precision, but limited fin density
Skived heat sink → best balance of high performance and compact design
A professional custom heat sink manufacturer can design and produce optimized solutions based on:
Heat load (W)
Thermal resistance target
Airflow conditions
Installation space
Material selection (aluminum or copper)
Services typically include:
Custom heat sink design
Thermal simulation
Prototype development
Mass production
A skived heat sink for power electronics is one of the most efficient passive cooling solutions for high-power electronic systems. With its high fin density and low thermal resistance, it can significantly reduce operating temperatures—from over 100°C down to as low as 55°C–75°C depending on conditions—ensuring stable and reliable system performance.
For industries requiring advanced thermal management solutions, skived heat sinks remain a preferred choice for high-efficiency cooling in compact and high-power applications.
A skived heat sink is a high-performance cooling device made by slicing thin fins directly from a solid aluminum or copper base. This structure eliminates thermal resistance between fins and base, improving heat transfer efficiency.
A skived heat sink for power electronics is used because power devices like IGBT and MOSFET generate high heat flux. Skived fin structures provide high surface area and low thermal resistance, making them ideal for efficient cooling.
An extruded heat sink is formed by pushing material through a die, limiting fin density. A skived heat sink is cut from a solid block, allowing much higher fin density and better thermal performance, especially for high-power applications.
Depending on design and airflow conditions, an aluminum skived heat sink can handle around 50W–500W in natural convection, and 500W–1500W+ with forced air cooling. Copper versions can support even higher heat loads in compact systems.
In power electronics applications:
Without optimized cooling: 90°C–110°C
With extruded heat sink: 70°C–85°C
With skived heat sink: 55°C–75°C
With optimized airflow systems: can be reduced to below 60°C
Common materials include:
Aluminum skived heat sink (cost-effective, lightweight)
Copper skived heat sink (higher thermal conductivity, better performance)
Yes. A custom heat sink manufacturer can design skived heat sinks based on thermal load, airflow conditions, size constraints, and application requirements.
They are widely used in:
Power electronics (inverters, converters, UPS)
Industrial drives
Renewable energy systems
Energy storage systems (ESS)
EV power modules
You should choose a skived heat sink when your application requires:
High power density cooling
Low thermal resistance
Compact design
Reliable long-term thermal performance
