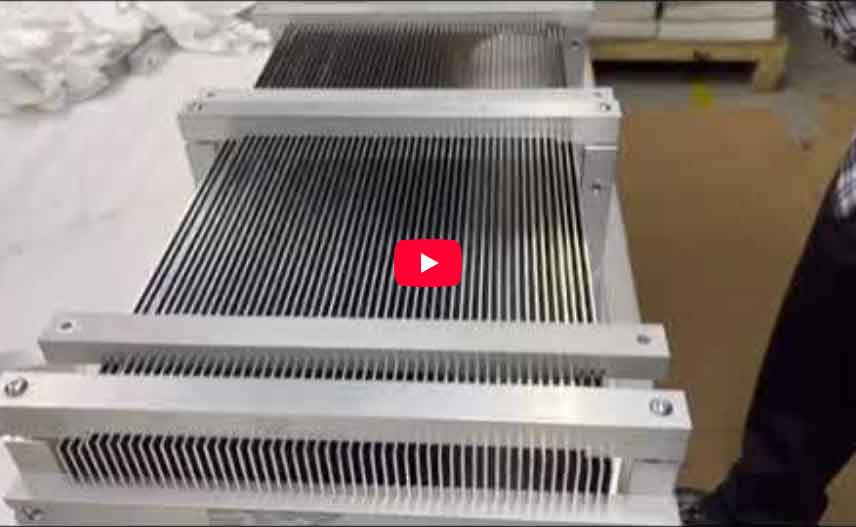

What is a Bonded Fin Heat Sink?

A Bonded Fin heat sink is an advanced thermal management solution widely used in high-power electronics. Unlike standard extruded profiles, this design bonds thin metal fins onto a solid base to maximize the heat dissipation surface area and improve airflow efficiency. By increasing convection and enhancing thermal transfer, Bonded Fin Heat Sinks offer superior cooling performance for compact yet powerful electronic devices.

Features of Bonded Fin Heat Sink

1. High Thermal Conductivity

• Manufactured with premium heat sink materials such as aluminum (6063-T5) or copper, the thermal conductivity reaches 200W/m·K or higher.

• A Copper Bonded Fin Heat Sink is often chosen for extreme performance needs, while an Aluminum Bonded Fin Heat Sink provides a cost-effective balance of weight and efficiency.

2. Customized Fin Density

• Flexible fin thickness from 0.2mm to 1.2mm with adjustable spacing to optimize airflow resistance and cooling performance.

• Customization allows clients to create a custom heatsink that adapts to specific applications.

3. Forced Air Cooling Adaptation

• The bonded fin structure works seamlessly with heat sink fins that channel air efficiently, making it suitable for industrial heat sink applications requiring forced air cooling.

4. High Power Application Support

• A High Power Bonded Fin Heat Sink can handle 100W to 10kW of thermal load, making it ideal for large-scale electronics.

• With large heatsinks available, thermal stability is ensured even in heavy-duty operations.

Applicable Fields

Bonded fin technology is increasingly used in industries that require powerful yet compact cooling solutions:

• Power Electronics: IGBTs, inverters, and converters benefit from efficient industrial heat sink designs.

• LED Lighting: Maintains brightness and extends lifespan by reducing junction temperatures.

• Communication Equipment: Widely applied in servers, base stations, and 5G infrastructure where stable cooling is critical.

• New Energy Vehicles: Supports electronic control units and power modules with custom heatsink designs tailored to electric mobility.

Why Choose KINGKA as Your Heatsink Manufacturer?

With 15+ years of expertise in thermal management, KINGKA is a trusted custom heatsink manufacturer specializing in Bonded Fin Heat Sinks and other advanced cooling solutions.

• One-Stop Customization

• From design to production, KINGKA offers full customization of extruded heat sink profiles, copper heat sink bases, and bonded fin assemblies.

• Clients can choose between Copper Bonded Fin Heat Sink or Aluminum Bonded Fin Heat Sink depending on performance and cost requirements.

• Advanced Manufacturing

• Equipped with CNC machining, anodizing, welding, and bonding technology, we ensure precision and reliability in every heat sink.

• Capable of both small batch trial runs and large-scale production.

• Rigorous Quality Control

• Every custom heatsink undergoes strict inspection for dimensional accuracy, surface finish, and thermal performance validation.

The Bonded Fin Heat Sink is the preferred solution for applications where high efficiency, compact size, and adaptability are required. Whether it’s a High Power Bonded Fin Heat Sink for industrial electronics, an Aluminum Bonded Fin Heat Sink for lightweight systems, or a Copper Bonded Fin Heat Sink for maximum performance, KINGKA delivers tailored solutions that meet diverse needs.

As a leading heatsink manufacturer, KINGKA provides not only reliable heat sink material options but also expertise in extruded heat sink profiles and custom heatsink engineering. For companies looking for large heatsinks, industrial heat sinks, or specialized heat sink fins solutions, KINGKA is your trusted partner.

Contact KINGKA today to discuss your project requirements and receive a free custom heatsink design plan.
