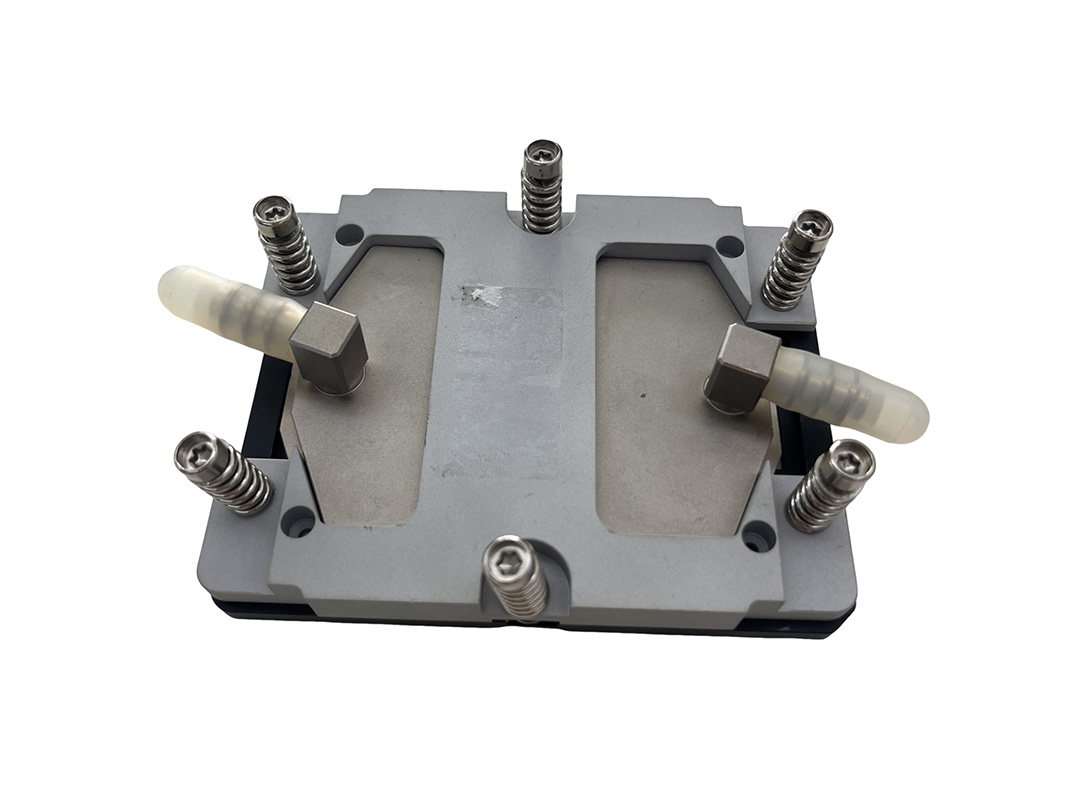

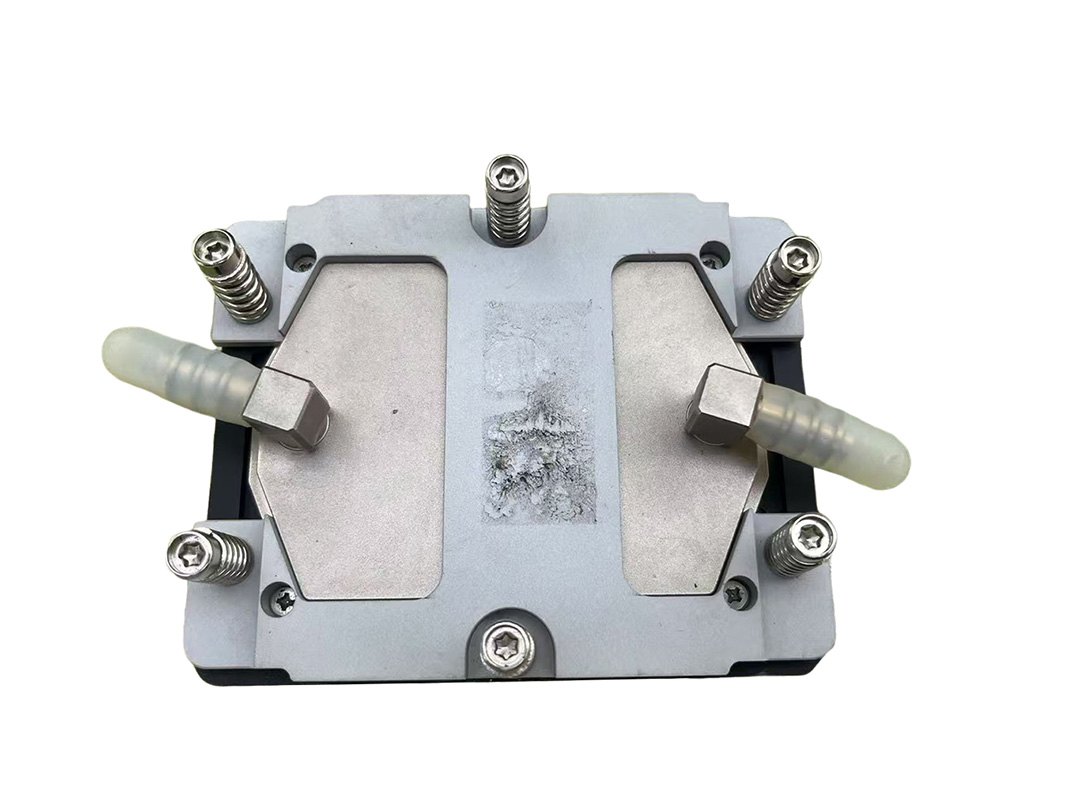

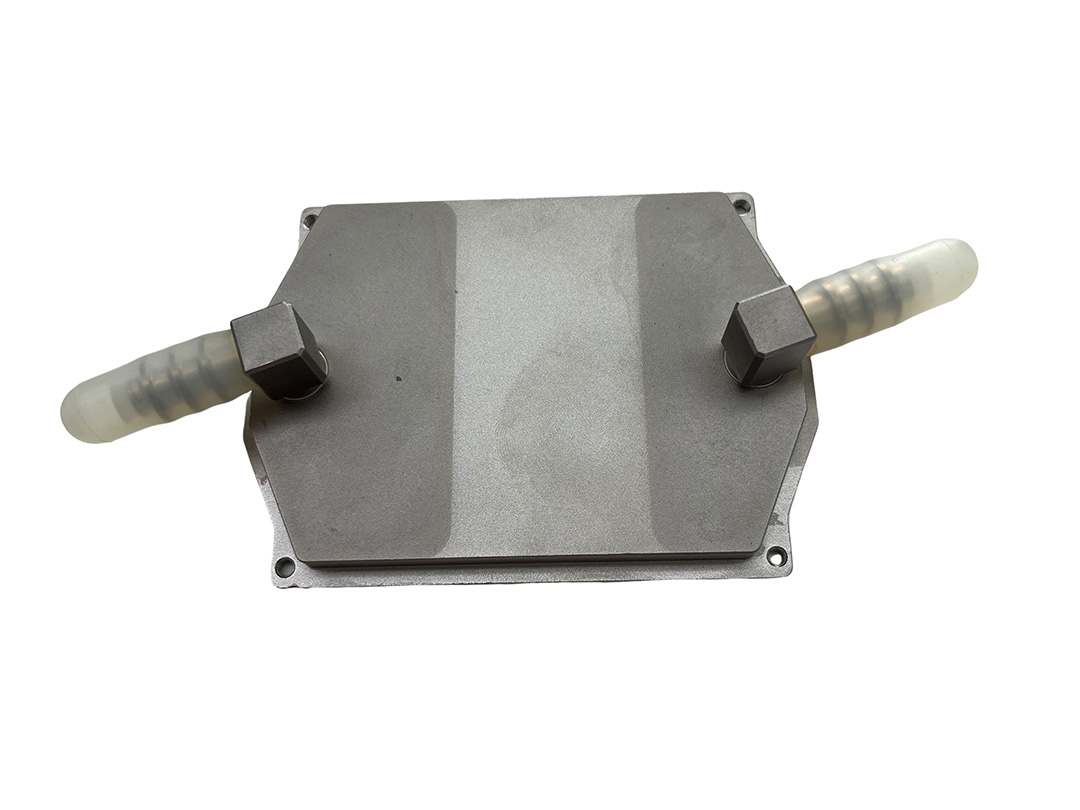

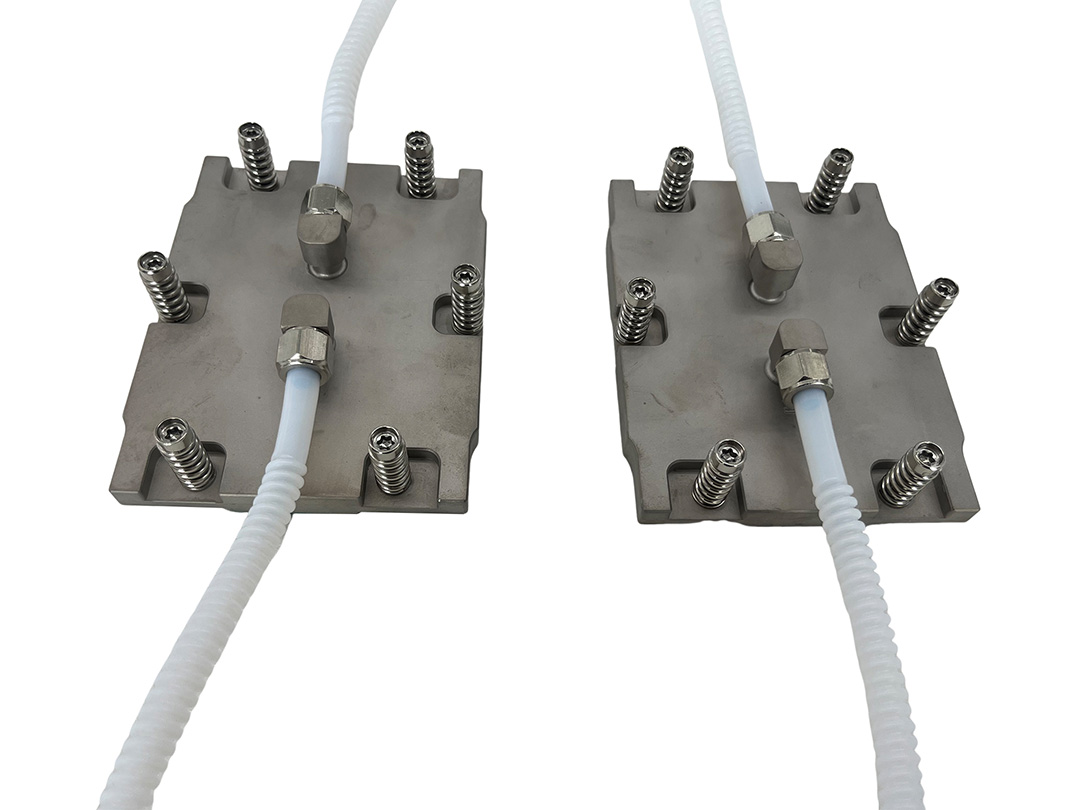

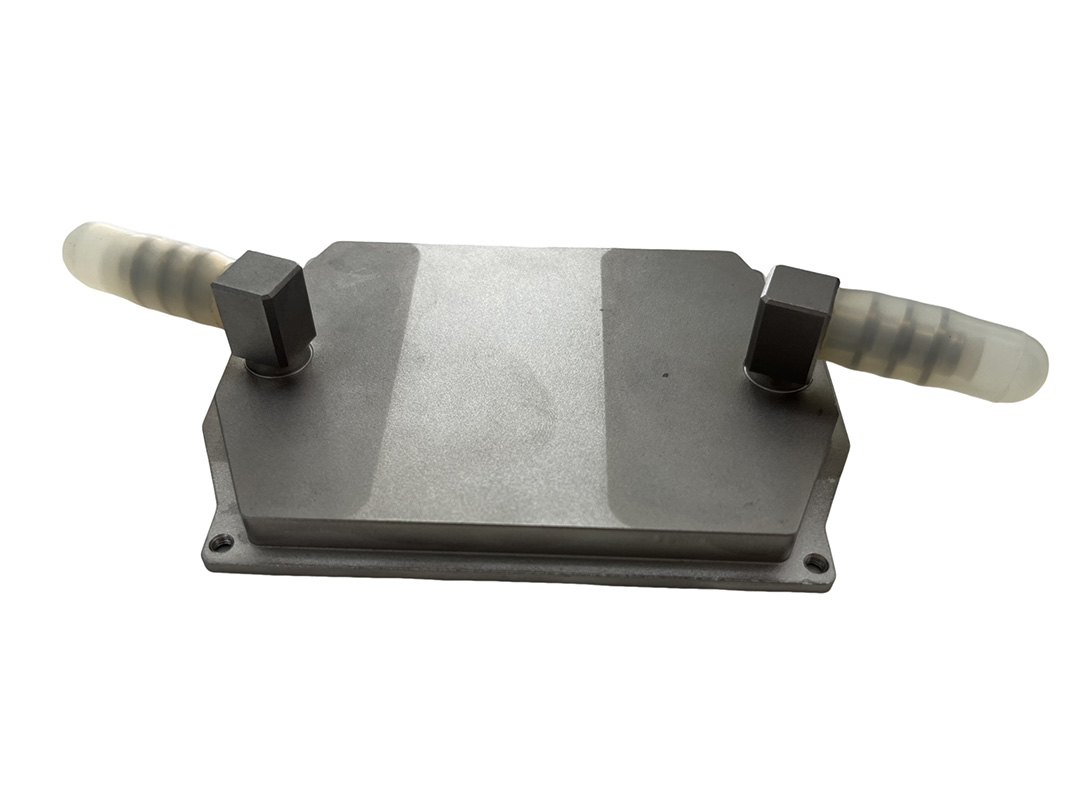

SP5 CPU Water Block

1. Engineered for AMD SP5 Socket Compatibility

The SP5 CPU Water Block is purpose-built for the AMD EPYC SP5 platform, offering a custom-fit cold plate that perfectly matches the CPU heatspreader dimensions. This ensures even thermal distribution across the entire processor surface, minimizing hotspots and maintaining consistent cooling efficiency.
It is fully compatible with AMD EPYC 9004 Series (Genoa/Bergamo) processors, making it the ideal choice for server integrators, OEM system builders, and data center solution providers seeking dependable SP5 cooling performance.

2. High-Efficiency Thermal Performance

Featuring a precision-machined microchannel structure or pin-fin array, the SP5 water block delivers superior heat transfer efficiency. Each microchannel is optimized through CFD (Computational Fluid Dynamics) simulation to maximize coolant flow and minimize thermal resistance.
This design significantly enhances liquid-to-surface heat exchange, ensuring high thermal conductivity and low junction temperatures even at extreme CPU loads.
The result is improved processor stability, extended component life, and reduced fan noise compared to traditional air cooling systems.

Key Advantages:

• Microchannel or pin-fin internal structure for optimized flow

• Uniform cooling across the CPU die area

• Reduced thermal resistance (<0.05 °C/W)

• Support for high coolant flow rates up to 6 L/min

3. Premium Material Construction

The SP5 CPU Water Block is crafted using high-purity copper or industrial-grade aluminum, both chosen for their excellent thermal conductivity and mechanical strength.
For enhanced durability and corrosion protection, the surface can be nickel-plated, anodized, or left bare based on system requirements.

Material Options:

• Base: Copper / Aluminum

• Surface Finish: Nickel Plated, Anodized, or Bare

• Top Cover: Aluminum, Acrylic, or Stainless Steel

• Sealing: High-temperature industrial-grade O-rings

This combination of materials ensures the water block maintains stable performance even under continuous 24/7 operation in high-density server environments.

4. Leak-Proof and Pressure-Tested Design

Every SP5 water block is leak-proof by design. It uses industrial-grade seals, precision-machined threads, and is pressure-tested up to 1.5 bar (21.7 psi) to ensure zero leakage during operation.
The internal structure is assembled under strict quality control standards, making it reliable for mission-critical data center cooling systems and OEM liquid-cooled servers.

Technical Reliability Highlights:

• Leak-tested at 1.5 bar

• Long-life O-ring sealing system

• Compatible with glycol-based and deionized water coolants

• Supports 24/7 continuous operation

5. Flexible Installation and Connectivity

The water block supports standard G1/4” threaded ports, allowing compatibility with most liquid cooling fittings, tubing sizes, and quick-disconnect systems.
OEMs and integrators can also request custom port orientation, mounting hole patterns, and manifold integration for large-scale deployments.

Mounting & Port Options:

• Thread Type: G1/4” (default)

• Customizable inlet/outlet orientation

• Mounting holes adjustable for OEM specifications

• Compatible with rack server manifolds and coolant distribution units (CDUs)

6. Optimized for Data Center and HPC Deployments

The low-profile design of the SP5 CPU Water Block fits within 1U and 2U rack-mounted servers, supporting dense computing environments.
It is widely adopted in data centers, AI/ML clusters, cloud servers, and high-performance computing nodes, where efficient cooling is vital for maintaining stable clock speeds and energy efficiency.

Application Scenarios:

• AMD EPYC SP5 server cooling

• High-density data center infrastructure

• HPC and AI/ML compute clusters

• Rack-based liquid cooling solutions

• OEM and custom server integration

7. Technical Specifications

8. Why Choose Our SP5 CPU Water Block

Our SP5 CPU Water Block represents the next generation of server-grade cooling solutions. Built with precision, durability, and customization in mind, it helps data centers and HPC users achieve superior thermal efficiency while maintaining maximum uptime.

Key Benefits:

• OEM/ODM customization (mounting, port position, dimensions, branding)

• High-efficiency thermal design verified by simulation

• Long-term reliability with corrosion-resistant materials

• Compatible with standard liquid cooling ecosystems

• Bulk manufacturing and white-label service available

We partner with server OEMs, AI system builders, and thermal solution integrators worldwide to deliver customized cooling modules tailored for AMD EPYC SP5 processors.

9. SP5 CPU Water Block – FAQ

Q1: Which CPUs is this water block compatible with?
A: It is designed for AMD EPYC SP5 socket CPUs, including Genoa and Bergamo series.

Q2: Can I customize the size or mounting hole pattern?
A: Yes, we offer OEM/ODM customization, including layout, port configuration, and branding.

Q3: What material options are available?
A: Copper and aluminum are available, with optional nickel plating or anodized coating.

Q4: Is this suitable for 1U/2U rack-mounted servers?
A: Yes, it has a low-profile structure designed for high-density rack integration.

Q5: Is the product leak-proof and pressure-tested?
A: Yes, every unit is pressure-tested up to 1.5 bar to ensure leak-free operation.

Q6: Do you support bulk and OEM orders?
A: Absolutely. We provide bulk supply, custom branding, and white-label production for data center integrators.
