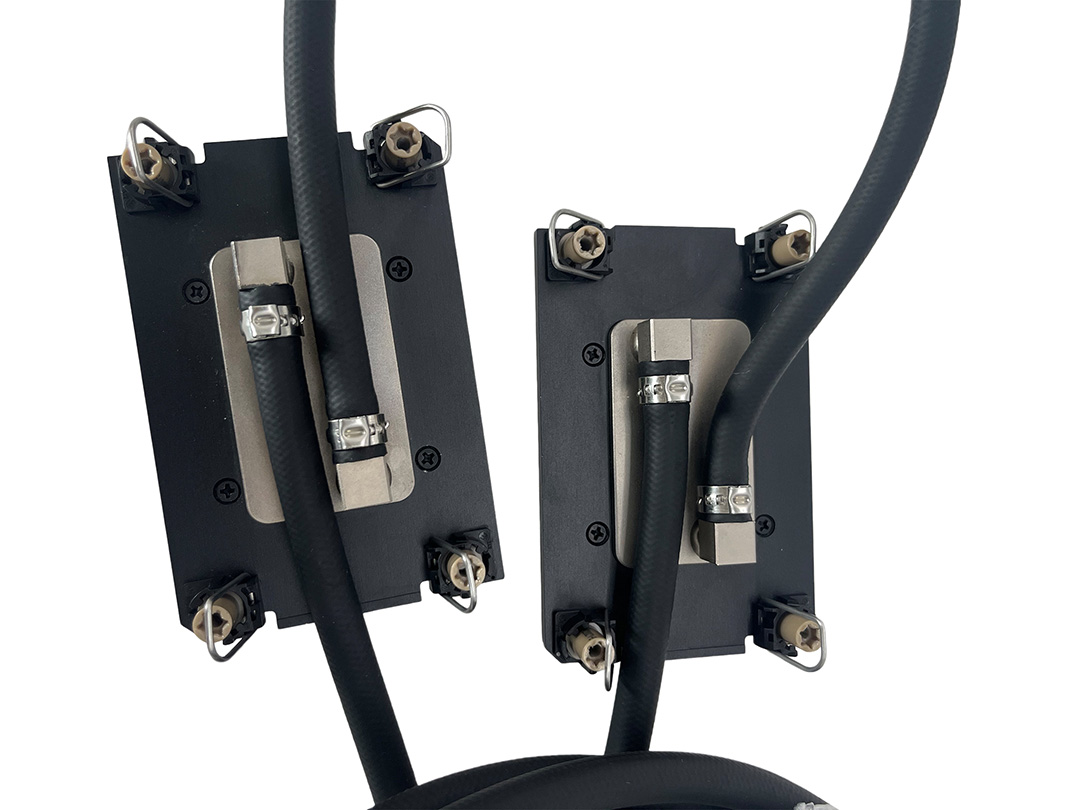

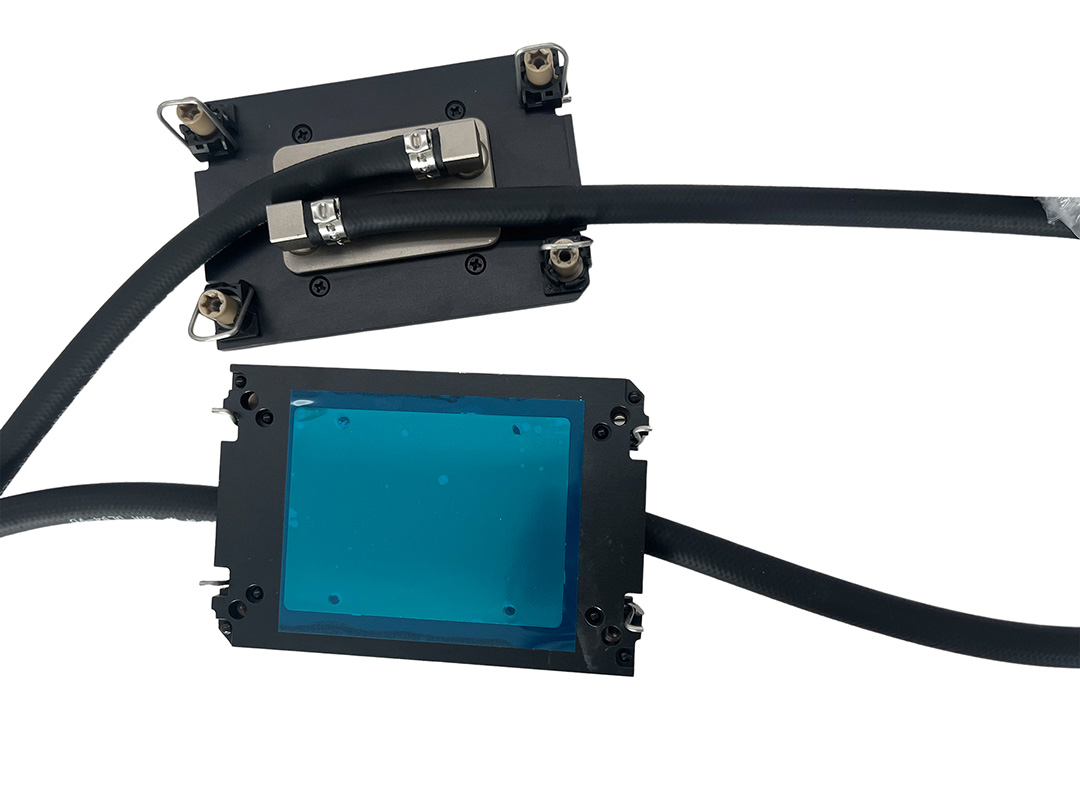

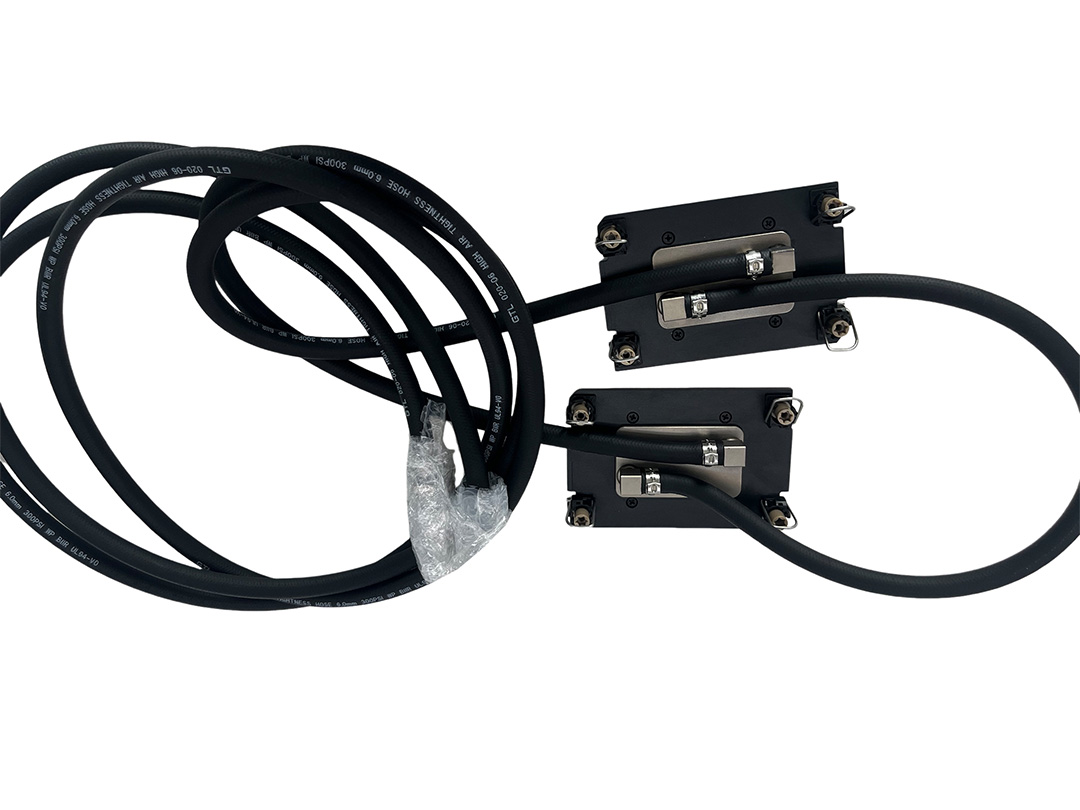

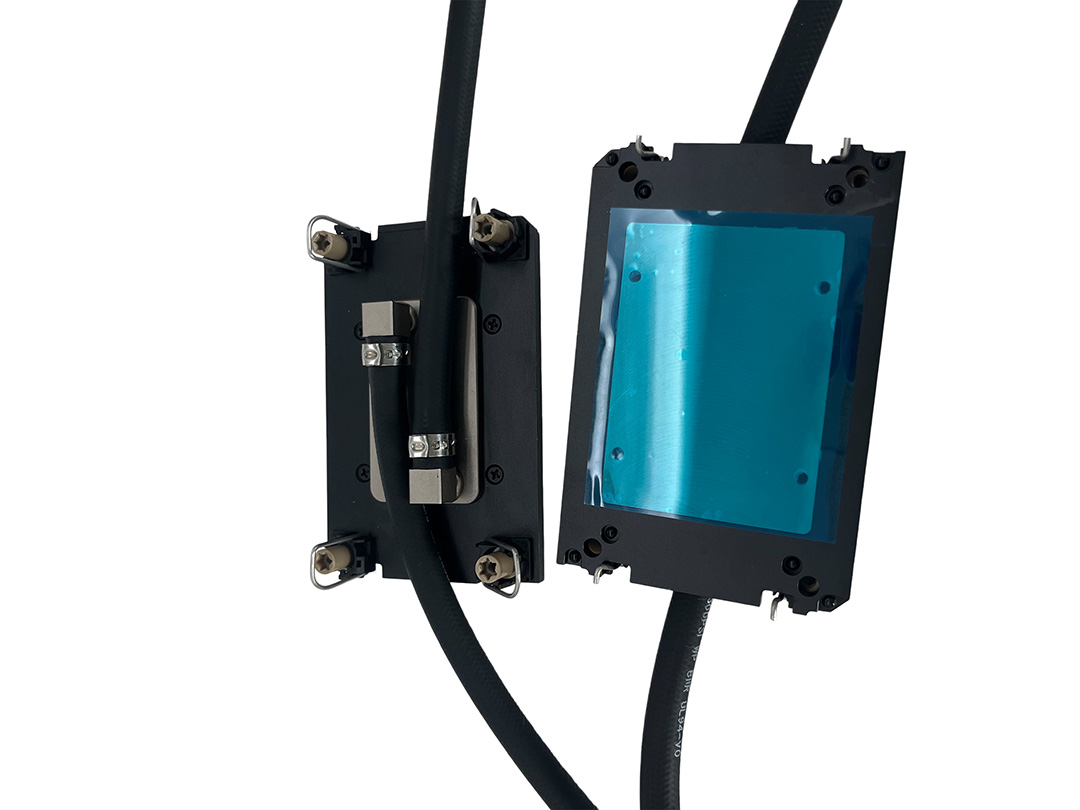

Birch Stream Cold Plate

The Birch Stream Cold Plate is a precision-engineered liquid cooling device tailored for Intel’s Birch Stream server platform. Designed to efficiently manage heat dissipation in high-performance computing (HPC), AI servers, and cloud-based infrastructure, this custom server cold plate ensures optimal thermal conductivity, stable CPU performance, and long-term operational reliability. Built for compatibility with Intel LGA4677 processors, it is an essential component for next-generation server cooling systems.

In a full liquid cooling loop, the cold plate is only part of the thermal solution. For large-scale server deployments, the supply and return liquid piping system (secondary-side loop) plays a crucial role in ensuring effective coolant distribution. This system includes manifolds for distributing cooling fluid between servers, flexible hoses, and quick-connect fittings to link manifolds and cold plates, as well as loop piping between CDUs and each server cabinet.

Key Features

• Optimized for Intel Birch Stream Servers
  Designed to support Intel’s latest Birch Stream architecture, including Xeon Scalable CPUs using LGA4677 socket.

• Efficient Thermal Management
  Features finely machined microchannel or pin-fin design to maximize heat transfer between the CPU and coolant.

• Durable, High-Conductivity Base Material
  Manufactured using copper or aluminum, with optional nickel plating for enhanced heat dissipation and corrosion protection.

• Customizable Liquid Cooling Configuration
  Compatible with G1/4” threaded ports or custom fittings to support a wide range of liquid cooling systems and installation layouts.

• Leak-Proof and Pressure-Tested Design
  Every unit is rigorously tested for sealing and pressure durability, ensuring leak-free operation in data center environments.

• Scalable for Rack Servers and Blade Systems
  Suitable for multi-node server configurations, enabling efficient liquid cooling integration in modular server racks.

• Secondary-Side Supply and Return Line Integration
  Supports full compatibility with secondary loop liquid distribution systems, including:

• Manifolds: Rectangular cross-section 30×30mm or 40×40mm, customizable in length (500–2200mm), made of SUS304, SUS316, or SUS316L stainless steel, with 10–20 coolant channels.

• Hose Connections: Soft tubing between manifolds and cold plates using 1/4″–3/8″ flexible PTFE or EPDM hoses.

• Quick Disconnect Fittings: Blind-mate or plug-in connectors such as UQD04S/P and UQD06S/P, made of stainless steel (SUS304/SUS316/SUS316L).

• Pressure Rating: Manifold systems support ≥1MPa working pressure for high-reliability deployment.

Technical Specifications

• Data Center Liquid Cooling Systems

• High-Performance Computing (HPC) Nodes

• AI Workload Servers

• Cloud Infrastructure Cooling

• Custom Liquid Cooling Integration for OEM Servers

Why Choose Our Birch Stream Cold Plate?

As a professional cold plate manufacturer and OEM supplier, we deliver solutions optimized for Intel server liquid cooling, providing custom cold plate design, superior thermal performance, and robust leak prevention. We also support comprehensive system-level design with secondary-side liquid supply and return piping integration, including manifold layout, flexible hose assembly, and quick-disconnect planning. Whether for enterprise deployments or edge computing, the Birch Stream Cold Plate ensures efficient thermal regulation and seamless integration into your server architecture.

Birch Stream Cold Plate – FAQ

Q1: What is the Birch Stream Cold Plate used for?

A: It is used for liquid cooling Intel Birch Stream servers, especially those with LGA4677 socket CPUs. It helps maintain stable processor temperatures in data centers, HPC servers, and AI computing platforms.

Q2: Which CPU platforms is this cold plate compatible with?

A: The cold plate is designed for Intel’s Birch Stream platform, supporting next-gen Xeon scalable processors with LGA4677 socket.

Q3: What materials are used for the Birch Stream Cold Plate?

A: We offer high-conductivity copper and lightweight aluminum, both of which can be treated with nickel plating or anodizing for enhanced durability and thermal performance.

Q4: Can this cold plate be customized?

A: Yes. We support OEM/ODM customization, including base size, port position, mounting holes, surface treatment, and inlet/outlet configuration.

Q5: Is this cold plate suitable for multi-node server racks?

A: Absolutely. The Birch Stream Cold Plate is ideal for use in high-density blade servers and rack-mount server liquid cooling systems.

Q6: What’s the pressure rating for this cold plate?

A: It’s tested to operate safely under a pressure of up to 1.5 bar (21.7 psi).

Q7: What kind of fittings are supported?

A: The standard version includes G1/4” threads, but custom fittings and quick-connect ports can also be provided based on your cooling system design.

Q8: Do you provide bulk orders and OEM services?

A: Yes. We provide bulk manufacturing, branding, and OEM/ODM services for server integrators, cooling solution providers, and data center equipment manufacturers.
