Heat Pipe Thermal Module

Our Heat Pipe Thermal Module is an advanced thermal management solution designed to provide efficient and reliable heat dissipation for a wide range of electronic devices. As a leading OEM heat pipe cooling solution provider, we deliver premium heat pipe cooling modules that combine high thermal conductivity copper pipes with optimized aluminum fins, ensuring superior performance for CPUs, GPUs, LEDs, and industrial electronics.

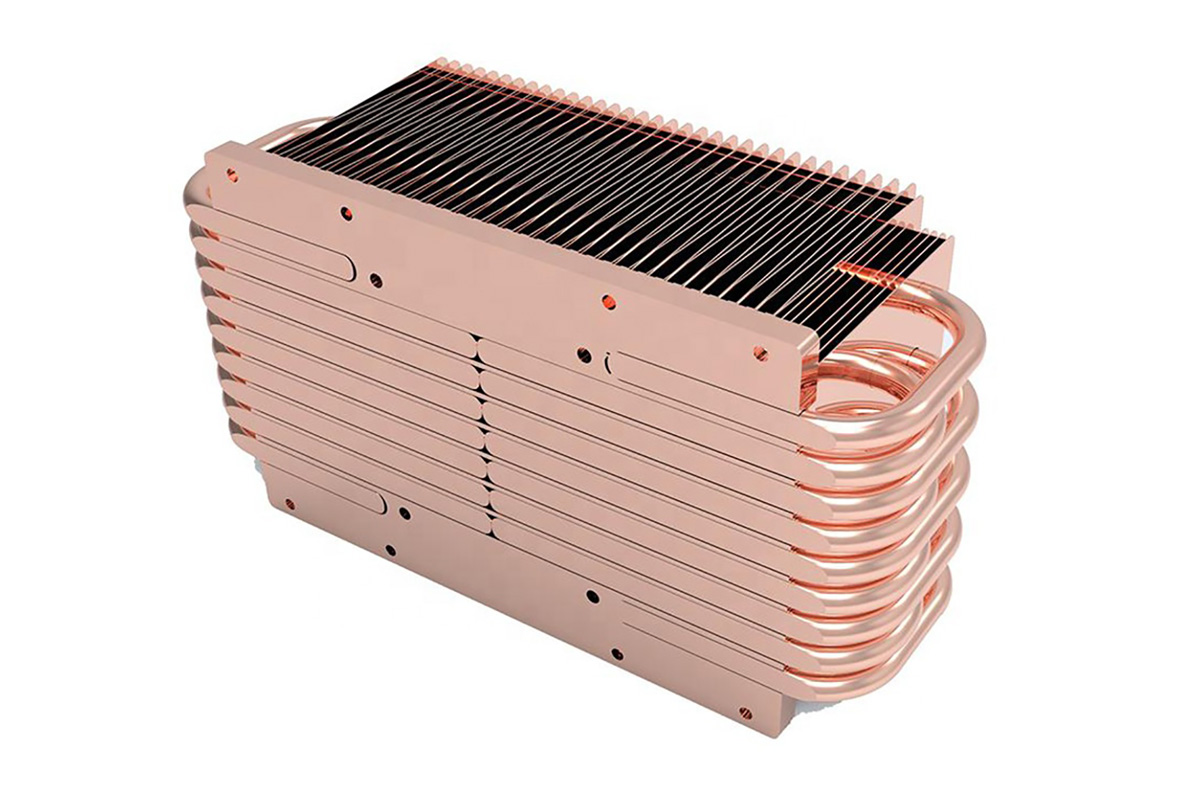

The copper Heat Pipe Thermal Module features multiple heat pipes embedded in a solid copper base. Heat generated by electronic components is rapidly absorbed by the pipes and transferred to aluminum fins, which then dissipate the heat into the surrounding air. This heat pipe heat sink module ensures minimal thermal resistance, uniform heat distribution, and high efficiency, making it an ideal choice for high-performance applications.

Key features include:

• High Thermal Conductivity: Copper pipes quickly transfer heat from the source to the fins.

• Optimized Aluminum Fins: Provide maximum surface area for rapid and uniform heat dissipation.

• Multi-Heat Pipe Configuration: Supports multiple heat pipes for high-power devices.

• Low Noise Operation: Works effectively in both passive and fan-assisted cooling systems.

• Durable Construction: Premium copper and aluminum materials guarantee long-term reliability.

Applications

Our Heat Pipe Thermal Modules are widely used in industries requiring reliable thermal management:

• CPU and GPU Thermal Modules: Ensures stable operation of high-performance computing devices.

• LED Heat Pipe Modules: Maintains brightness and extends lifespan of high-power LED lighting systems.

• Power Electronics Thermal Modules: Provides effective cooling for inverters, converters, and industrial electronics.

• Server and Telecom Heat Pipe Modules: Keeps networking equipment and servers running efficiently.

• Custom Heat Pipe Thermal Modules: Tailored solutions for specialized applications.

Heat Dissipation Principle

The heat pipe cooler operates on the phase-change principle. A small amount of working fluid inside each heat pipe vaporizes when heated, rises to the cooler fin area, and condenses, releasing heat. The liquid then returns to the base via capillary action, creating a continuous heat transfer cycle. This mechanism allows our high performance heat pipe modules to remove heat quickly and maintain device stability, outperforming conventional solid metal heat sinks.

Customization Capabilities

We offer flexible options for custom heat pipe thermal modules:

• Number of Heat Pipes: From 1 to 6 or more, based on thermal requirements.

• Pipe Diameter: 6mm, 8mm, 10mm, or customized sizes.

• Fin Design and Material: Adjustable fin density, thickness, and material to optimize airflow and cooling efficiency.

• Module Shape and Size: Designed to fit unique device layouts or OEM specifications.

• Surface Treatment: Optional nickel plating or anodization for corrosion resistance and enhanced appearance.

Technical Advantages

Compared to standard thermal modules, our heat pipe thermal module provides:

• Faster Heat Transfer: Copper ensures superior thermal conductivity.

• Higher Heat Dissipation Efficiency: Multi-pipe design maximizes airflow and cooling.

• Extended Component Lifespan: Reduces thermal stress on sensitive electronics.

• Compatibility with Active and Passive Cooling: Works seamlessly with fans or through natural convection.

• Durable and Reliable: High-quality materials maintain long-term performance, even in demanding industrial conditions.

Customer Benefits

Choosing our heat pipe cooling modules provides tangible benefits:

• Stable Device Performance: Maintains safe operating temperatures and prevents overheating.

• Energy Efficiency: Reduces reliance on additional cooling systems.

• Cost Savings: Extends component lifespan and reduces maintenance frequency.

• Custom Solutions: Tailored heat pipe thermal modules meet specific requirements.

• Enhanced Product Reliability: High-quality thermal management solutions support your OEM products’ performance and reputation.

Our Heat Pipe Thermal Module is a versatile and reliable solution for all high-performance cooling needs. Whether you need a CPU/GPU thermal module, LED heat pipe module, or a custom heat pipe thermal module, our products provide efficient thermal management, long-lasting durability, and flexible design options. As a trusted OEM heat pipe cooling solution provider, we deliver high performance heat pipe modules that ensure your devices operate safely, efficiently, and quietly.

FAQ – Heat Pipe Thermal Module

Q1: What is a Heat Pipe Thermal Module?
A Heat Pipe Thermal Module is a high-performance heat pipe cooling module designed to efficiently transfer heat from electronic components to aluminum fins using copper heat pipes. It is widely used as a CPU/GPU thermal module, LED heat pipe module, or industrial thermal management solution.

Q2: How does a Heat Pipe Cooler work?
The heat pipe heat sink module operates on the phase-change principle. A small amount of working fluid inside each copper pipe vaporizes when heated, rises to the cooler fins, and condenses, releasing heat. The liquid returns to the base via capillary action, creating a continuous heat transfer cycle. This ensures efficient heat dissipation and stable device operation.

Q3: What applications are suitable for Heat Pipe Thermal Modules?
Our copper heat pipe thermal module is ideal for:

• CPU and GPU cooling in desktops, servers, and workstations

• LED lighting systems for high-power LEDs

• Power electronics and industrial equipment

• Telecom and data center servers

• Custom electronic devices requiring efficient thermal management

Q4: Can Heat Pipe Thermal Modules be customized?
Yes, we offer custom heat pipe thermal modules with options such as:

• Number of heat pipes (1–6 or more)

• Pipe diameter (6mm, 8mm, 10mm, or custom sizes)

• Fin density, thickness, and material

• Shape and size tailored to device layouts

• Surface treatments like nickel plating or anodization

Q5: What are the advantages of a Heat Pipe Thermal Module over traditional heat sinks?
Compared to conventional heat sinks, a high performance heat pipe module provides:

• Faster heat transfer through copper pipes

• Higher heat dissipation efficiency with multi-pipe design

• Reduced thermal stress and extended component lifespan

• Compatibility with both passive and fan-assisted cooling

• Long-term durability in industrial or high-temperature environments

Q6: Are Heat Pipe Thermal Modules noisy?
No. Passive heat pipe cooling modules operate silently. When combined with fans, noise levels remain low while ensuring optimal heat dissipation.

Q7: How do I choose the right Heat Pipe Thermal Module for my application?
Consider the following:

• Power output and heat generation of your component

• Available space and airflow conditions

• Required thermal resistance

• Customization needs (number of pipes, diameter, fin design)
  Our team can provide guidance and deliver a custom heat pipe thermal module solution tailored to your requirements.

Q8: Can Heat Pipe Thermal Modules be used in LED applications?
Yes. LED heat pipe modules efficiently dissipate heat from high-power LEDs, ensuring stable brightness and extending LED lifespan.

Q9: How durable are Heat Pipe Thermal Modules?
Our copper heat pipe thermal modules use premium copper and aluminum materials, providing corrosion resistance and long-term reliability even in demanding industrial conditions.

Q10: Why choose your Heat Pipe Thermal Modules?
As a trusted OEM heat pipe cooling solution provider, we deliver high performance heat pipe modules with high thermal efficiency, customizable designs, and durable construction. Our modules help maintain device stability, improve energy efficiency, reduce maintenance costs, and ensure reliable thermal management for any application.
