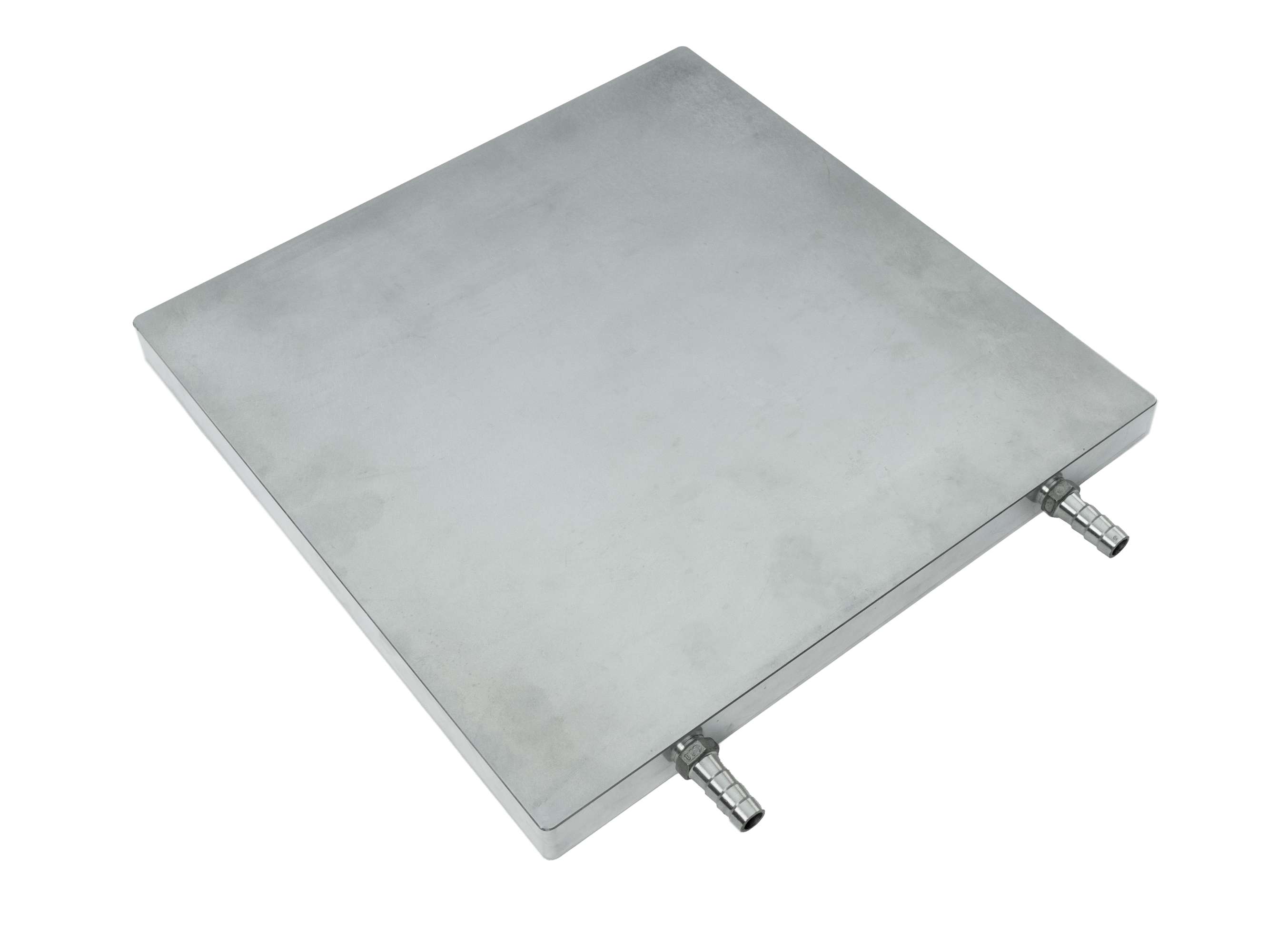

High Efficiency Liquid Cold Plate

What is High Efficiency Liquid Cold Plate？

The High Efficiency Liquid Cold Plate is a state-of-the-art thermal management solution engineered for high-power electronic systems. Manufactured using advanced Friction Stir Welding (FSW) technology, this FSW Liquid Cold Plate offers superior structural integrity, excellent thermal conductivity, and consistent long-term performance. Designed to deliver efficient and uniform heat dissipation, it is ideal for high-performance applications such as power electronics, EV batteries, industrial inverters, and data center cooling systems.

Processing Machines

Our production facility is equipped with cutting-edge machines to ensure high precision and consistent quality, including:

• CNC Machining Centers

• Friction Stir Welding Machines

• Automatic Brazing Systems

• High-Precision Milling and Drilling Equipment

• Leak Testing and Helium Detection Units

These machines allow us to produce complex liquid cold plate modules that meet demanding thermal performance and structural strength standards.

Processing Technology

The core of our liquid cooling plate production is the FSW (Friction Stir Welding) cooling system process, which ensures seamless, high-strength joints between aluminum layers without distortion or porosity. Additional processes include:

• CNC Milling and Drilling for precision fluid channels

• Precision Surface Flattening for uniform thermal contact

• Automated Leak and Pressure Testing for product reliability

Materials and Precision

We use high-quality materials such as:

• Aluminum Alloys (6061, 3003, 5052) – for excellent thermal conductivity and corrosion resistance

• Copper Inserts – optional for high heat flux zones

• Stainless Steel – for specific corrosion-resistant applications

Precision:

• Flatness Tolerance: ±0.05mm

• Channel Width/Depth Tolerance: ±0.1mm

• Surface Roughness: Ra ≤ 1.6µm

These tolerances ensure tight integration with power modules and other heat sources.

Common Surface Treatment

To further enhance durability and thermal performance, we offer various surface finishes for our liquid cooling heat plates, including:

• Anodizing – for corrosion resistance and insulation

• Nickel Plating – for increased wear resistance

• Powder Coating or Custom Finishes – based on specific project requirements

Usage Scenarios

Our FSW liquid cold plates are widely used in high-demand thermal applications such as:

• Electric Vehicle Battery Cooling

• Power Inverter Heat Dissipation

• Laser Equipment Thermal Management

• Telecom Base Station Cooling

• Data Centers & Server Cooling Systems

• Industrial Automation and Robotics

They form the core of advanced liquid cooling heat dissipation systems across multiple industries.

Features and Usage Advantages

FSW Technology: Provides robust, leak-free bonding without internal defects
Efficient Heat Dissipation: Optimized internal channels maximize thermal transfer
Customizable Designs: Tailored channel paths and ports to match customer specs
Lightweight and Durable: Ideal for weight-sensitive applications such as EVs
Modular Integration: Easily integrates into liquid cooling devices and assemblies
High Reliability: Leak-tested and performance-validated for long-term use
Eco-friendly Manufacturing: Clean process with minimal emissions

FAQ – High Efficiency Liquid Cold Plate

What is a liquid cold plate and how does it work?
A liquid cold plate is a heat exchanger that circulates coolant through internal channels to absorb and transfer heat away from high-power components. It provides more efficient heat dissipation than traditional air cooling, making it ideal for demanding thermal applications.

What are the benefits of FSW (Friction Stir Welding) cold plates?
FSW liquid cold plates offer leak-free, high-strength bonding with no internal porosity. This process ensures excellent thermal conductivity and mechanical stability, especially under high-pressure fluid conditions.

Can I customize the channel design and port locations?

Yes, we offer full customization services. You can specify channel layout, flow rate requirements, inlet/outlet port positions, and mounting hole patterns. Our engineering team can also assist with thermal simulations and design optimization.

What cooling fluids are compatible with your cold plates?
Our cold plates are compatible with a variety of coolants including water, deionized water, glycol mixtures (ethylene or propylene), and dielectric fluids. Material selection can be adjusted based on the fluid's chemical compatibility.

What industries commonly use high-performance liquid cold plates?
Common applications include electric vehicles (EV battery cooling), industrial laser systems, power inverters, telecom equipment, data center servers, and renewable energy systems such as wind and solar inverters.

What is the maximum operating pressure and temperature?
Typical operating pressure is up to 6 bar (customizable), and temperature tolerance ranges from -40°C to 120°C, depending on materials and fluid type.
