As the medical testing industry continues to advance toward automation, high throughput, and greater precision, equipment such as the Fully Automatic ELISA Analyzer, Nucleic Acid Extractor, and Biochemical Analyzer is placing increasingly higher demands on the accuracy, stability, and thermal management performance of core components.

These types of IVD (in vitro diagnostic) and life science automation systems typically integrate functions such as precision liquid handling, constant-temperature incubation, plate washing, optical reading, and X-Y-Z motion control. Behind these sophisticated functions lies a wide range of high-quality precision machined parts and thermal management components.

As a professional manufacturer, Kingka leverages extensive experience in precision machining, die casting, cold forging, heat sink manufacturing, Liquid Cold Plate production, and surface treatment to provide reliable and customized component solutions for medical analyzers and life science automation equipment.

Why Medical Automation Equipment Requires High-Precision Components

1. High Integration and Modular Design

Modern medical analyzers are typically designed with a highly integrated and modular structure. Inside the machine, there are often multiple functional modules, such as:

• Robotic Arm / Pipetting Workstation

• Incubation Tower

• Reagent Cooling Module

• Optical Detection Unit

• Wash Station

These modules require a large number of:

• support brackets

• base plates

• mounting plates

• internal enclosures

• precision carriers and holders

As a result, CNC Machining accuracy, assembly consistency, and surface finish quality are all critically important.

2. Strict Temperature Control

In a Fully Automatic ELISA Analyzer, enzymatic reactions usually need to be maintained at around 37°C, with temperature variation controlled within a very narrow range. At the same time, reagent positions often require semiconductor cooling modules to keep reagents fresh and stable.

Therefore, these medical devices commonly require components such as:

• Incubation Heating Block

• Constant Temperature Aluminum Plate

• Peltier Cooling Cold Plate

• Reagent Cooling Plate

• Aluminum Heating Plate

These parts must not only provide excellent thermal conductivity, but also offer high flatness, precise assembly fit, and uniform temperature distribution.

3. Precision Motion and Mechanical Stability

Automated sampling and transfer processes in medical analyzers rely on precision motion systems, including:

• X-Y-Z linear motion structures

• guide rail systems

• motor-driven transfer mechanisms

• timing belt transmission systems

Related components such as:

• Linear Rail Mounts

• Linear Guide Rail Support

• Stepper Motor Mounting Plate

• Timing Belt Pulley

• Z-axis Probe Mounting Bracket

must deliver excellent dimensional accuracy, stable mechanical strength, and consistent assembly quality to ensure long-term repeatability and precise positioning.

4. Corrosion Resistance and Cleanliness

Because these systems are regularly exposed to chemical reagents, cleaning fluids, and laboratory environments, aluminum alloy and metal parts often require high-standard surface treatment processes, such as:

• anodizing

• sandblasting

• passivation

• precision cleaning

These treatments help improve:

• corrosion resistance

• surface cleanliness

• service life

• visual consistency

Kingka’s Product Solutions for Medical IVD Equipment

Based on the structural and functional requirements of medical analyzers, Kingka’s machining solutions can be broadly divided into two major categories:

• Thermal Management Components

• Precision Machined Parts

1. Thermal Management Components for Medical Equipment

Thermal management and temperature control components are among the most critical parts in medical analyzers, and this is also one of Kingka’s core strengths. Through precision machining, brazing, heat dissipation design, and advanced surface treatment, Kingka can provide high-performance temperature control parts for medical equipment.

Main Thermal Management Products

• Incubation Heating Block

• Constant Temperature Aluminum Plate

• Peltier Cooling Cold Plate

• Liquid Cold Plate for Medical Lasers

• High-Finned Heat Sink for Reagent Cooling

• Thermal Conductivity Bridge

• Reagent Cooling Plate

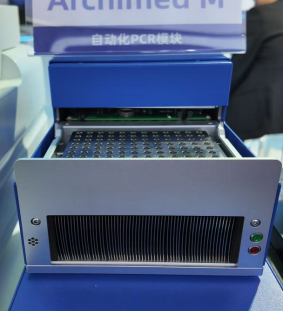

• Thermal Cycler Heat Sink

• Peltier Cooling Module Base

• Constant Temperature Carrier

• Aluminum Heating Plate

• Brazed Liquid Cooling Plate

Typical Applications

Incubation Heating Block

Used for constant-temperature incubation of 96-well plates or other reaction modules, requiring:

• high thermal conductivity

• high flatness

• excellent temperature uniformity

• stable assembly precision

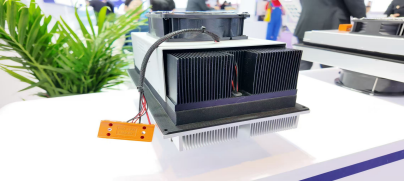

Peltier Cooling Cold Plate

Used in reagent cooling modules or temperature-sensitive reagent storage areas, requiring:

• efficient heat transfer

• precise dimensions

• good contact with semiconductor cooling elements

Brazed Liquid Cooling Plate

Suitable for higher heat-load applications such as medical optical detection systems, laser modules, or high-power control units, offering:

• stronger cooling capacity

• customized flow channel design

• enhanced system stability

High-Finned Heat Sink for Reagent Cooling

Designed for compact spaces where efficient heat dissipation is required to improve cooling module performance.

2. Precision Machined Parts for Medical Automation Equipment

In addition to temperature control parts, medical equipment also requires a wide variety of precision structural components for support, positioning, transmission, and fluid control.

Main Precision Machined Products

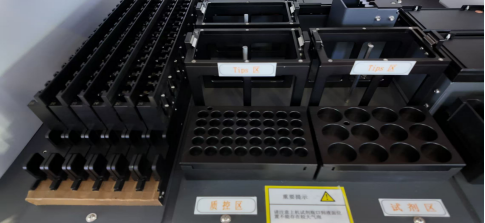

• Aluminum Reagent Rack

• Microplate Carrier / Holder

• Sample Tray / Rack

• Aluminum Plate / Tray for ELISA

• Linear Rail Mounts

• Motor Housing & Brackets

• Manifold Block

• Custom Aluminum Enclosure

• Z-axis Probe Mounting Bracket

• Linear Guide Rail Support

• Stepper Motor Mounting Plate

• Optical Bench Baseplate

• Robotic Arm Gantry Component

• Robotic Arm Support Bracket

• Timing Belt Pulley

• Limit Switch Bracket

Fluid Handling and Distribution Components

For washing modules and liquid handling systems, Kingka can also machine complex fluid-control parts, including:

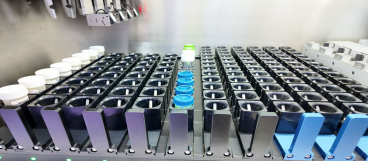

• Liquid Distribution Manifold

• Buffer Tank Manifold

• Vacuum Manifold Block

• Wash Station Block

These parts often require:

• complex internal flow channel machining

• high airtightness or liquid-tightness

• excellent surface quality

• strict dimensional consistency

Housing and EMI Shielding Components

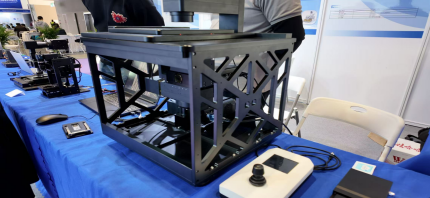

• Internal Chassis Framework

• Shielding Enclosure for Electronics

• Custom Aluminum Handle & Knobs

These components serve as the structural foundation of the machine while also supporting electromagnetic shielding and operational convenience. They therefore require both precise machining and high appearance quality.

Kingka’s Manufacturing Advantages

Kingka provides one-stop manufacturing support for medical equipment customers, from prototype development to mass production. Key advantages include:

Precision Machining Capability

• High-precision CNC machining

• Multi-axis machining capability

• Complex aluminum structural part processing

• Support for both prototyping and volume production

Thermal Management Expertise

• Heat sink manufacturing

• Cold plate production

• Brazed liquid cooling plate solutions

• Heating block and aluminum plate processing

Material Options

• Aluminum alloys

• Copper

• Stainless steel

• Engineering plastics

Surface Treatment

• Anodizing

• Sandblasting

• Polishing

• Plating

• Medical equipment-oriented surface finishing

Customization Support

• OEM/ODM custom design

• Drawing-based machining

• Prototype-to-production support

• Integrated structural and thermal solutions

Why Choose Kingka for Medical Device Components

For manufacturers of IVD equipment and life science automation systems, choosing the right component supplier is essential. Kingka provides the following value:

• High precision machining for critical medical assemblies

• Reliable thermal management solutions for stable temperature control

• Custom structural parts for robotic, optical, and fluid systems

• Excellent surface treatment capability for corrosion resistance and clean appearance

• Flexible production capacity from prototyping to mass manufacturing

By combining precision machining with thermal management expertise, Kingka can do more than produce individual parts. We help medical equipment manufacturers build more reliable, efficient, and integrated component solutions.

As equipment such as Fully Automatic ELISA Analyzers, Nucleic Acid Extractors, and Biochemical Analyzers continues to evolve, demand for high-precision and highly stable components will keep growing. Whether it is an Incubation Heating Block, Peltier Cooling Cold Plate, Reagent Cooling Plate, Optical Bench Baseplate, Liquid Distribution Manifold, or Robotic Arm Support Bracket, all of these critical parts rely on strong manufacturing capability.

With comprehensive strengths in precision machining, cold forging, die casting, thermal management, and surface treatment, Kingka is well positioned to provide high-quality, customized key component solutions for the medical device and IVD automation industries.
